50A-600A high voltage conducting rod, 300A-1200A low voltage Amphenol connector

Current Location:home > products > Transformer Amphenol connector, conducting rod

50A-600A high voltage conducting rod, 300A-1200A low voltage Amphenol connector
Contacts:Section manager
Tel:0086-318-3736777 0086-318-3736111
Mobile: 86-13333086669

■ Outline dimension

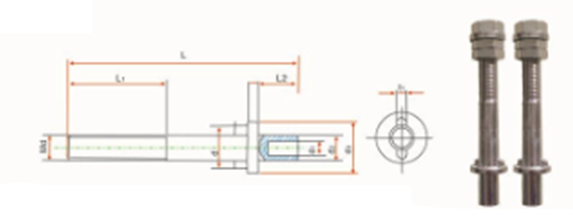

■ Technical parameters and outline dimension

Code	Rated current A	Dimensions (mm)										Weight Kg
Code	Rated current A	L	L1	L2	Md	d	d1	d2	d3	t	t1	Weight Kg
WT. 0050. 1	50	115	55	20	12X1.75	20	6	12	25	5	4	0.17
WT.0100.2	100	115	55	20	12X1.75	20	12	18	25	5	4	0.18
WT.0600.3	275	115	55	20	12X1.75	20	12	18	25	5	4	0.18
WT.0275.3	315	115	55	20	12X1.75	20	18	25	25	5	4	0.2
WT.0400.5.A	400	205	90	28	16X2	28	12	20	32	10	6	0.48
WT.0400.5.B	400	205	80	28	16X2	28	16	24	32	10	6	0.5
WT.0600.6.A	600	205	80	28	20X2. 5	28	16	24	32	10	6	0.7
WT.0600.6.B	600	205	80	28	20X2. 5	28	20	30	23	10	6	0.75

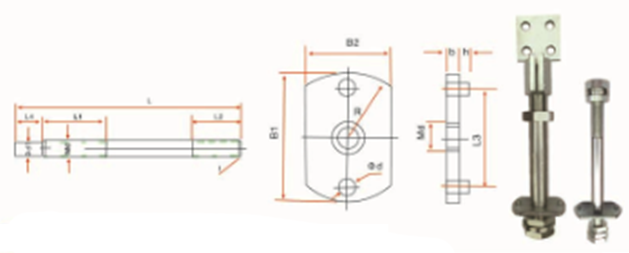

■ Technical parameters and outline dimension

Code	Rated current A	Dimensions (mm)														Weight Kg
Code	Rated current A	L	L1	L2	L3	Md	Od	B1	B2	R	b	h	t	Od1	L4	Weight Kg
WT.0300	300	195	65	30	36	12x1.75	5	50	30	25	5	4.5	1			0.3
WT.0400	400	225	75	40	55	16x2	6	70	45	35	6	5	1			0.65
WT.0600	600	230	55	50	55	20x2.5	6	70	45	35	6	5	1.5			0.95
WT.0800	800	265	70	55	70	24x1.5	8	90	60	45	8	5	1.5			1.6
WT.1000	1000	275	45	45	70	30x1.5	8	90	60	45	8	5	1.5	27	60	2.3
WT.1200	1200	285	55	45	70	33x1.5	8	90	60	45	8	5	1.5	30	60	2.75
