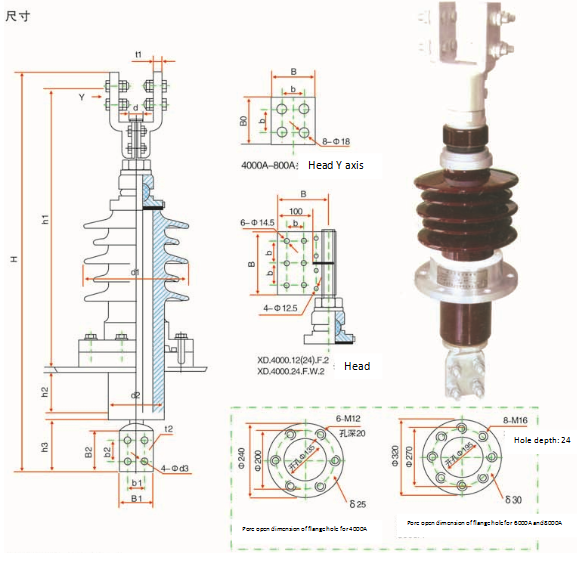

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||||||||||||||
|
H |
h1 |
h2 |
h3 |
d |
d1 |
d2 |
B0 |
B |
b |
B1 |
B2 |
b1 |
b2 |
d3 |
t1 |
t2 |
|||||
|
WT.4000.12.F.1 |
BDF-12/4000 |
730 |
513 |
95 |
110 |
Φ52 |
180 |
120 |
100 |
100 |
45 |
80 |
90 |
45 |
45 |
14.5 |
18 |
16 |
Single Umbrella |
340 |
28 |
|
WT.4000.12.F.1 |
BDF-24/4000 |
770 |
553 |
95 |
110 |
Φ52 |
180 |
120 |
100 |
100 |
45 |
80 |
90 |
45 |
45 |
14.5 |
18 |
16 |
Single Umbrella |
400 |
30 |
|
|
|||||||||||||||||||||
|
WT.4000.24.F.2 |
BDF-24/4000 |
735 |
518 |
95 |
110 |
Φ52 |
180 |
120 |
|
155 |
45 |
80 |
90 |
45 |
45 |
14.5 |
|
16 |
Single Umbrella |
400 |
32 |
|
WT.4000.24.F.W.2 |
BDFW-24/4000 |
735 |
518 |
95 |
110 |
Φ52 |
200 |
120 |
|
155 |
45 |
80 |
90 |
45 |
45 |
14.5 |
|
16 |
Big and small umbrellas |
500 |
35 |
|
WT.6000.24.F |
BDF-24/6000 |
1107 |
800 |
90 |
200 |
Φ62 |
250 |
180 |
130 |
120 |
60 |
120 |
150 |
60 |
80 |
18 |
20 |
30 |
Single Umbrella |
500 |
90 |
|
WT.8000.24.F |
BDFW-24/8000 |
1107 |
800 |
90 |
200 |
Φ90 |
250 |
180 |
130 |
120 |
60 |
120 |
150 |
60 |
80 |
18 |
22 |
30 |
Big and small umbrellas |
500 |
97 |
