BFW-40.5KV/50A~630A-4 Bush
BFW-40.5KV/50A~630A-4 Bush
Contacts:Section manager
Tel:0086-318-3736777   0086-318-3736111
Mobile: 86-13333086669

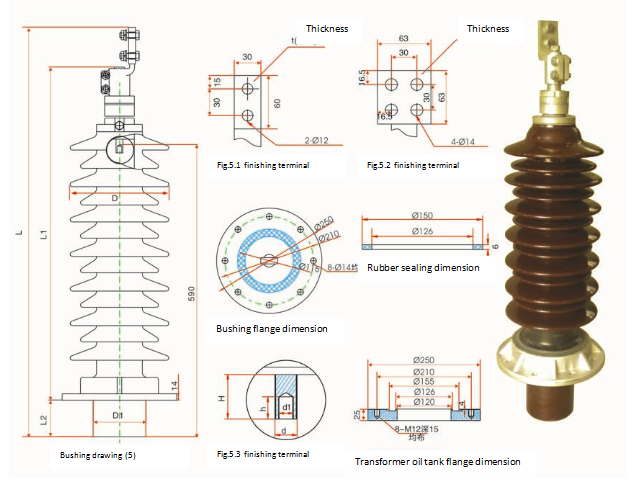

■ Outline dimension

■ Bushing technical parameters and outline dimension


Code



Type



(Type-Voltage/Current)mm



Gas Zui child(MM)



Oil male child (MM)



Shape



Creepage distance


L

L1(±10)

L2

D

D1

Map

t


Map

H

h d d1

WTFTG.4050

BFW-40.5KV/50A-4

875

655

140


205

115

Map5.1

10


Map4.3

30

15 15 10

7 Big 6 small

1256

WTFTG.4051

BFW-40.5KV/100A-4

875

655

140

205

155

Map5.1

10


Map4.3

30

20 20 15

7 Big 6 small

1256

WTFTG.4052

BFW-40.5KV/250A-4

875

655

140

205

155

Map5.1

10


Map4.3

30

20 25 15

7 Big 6 small

1256

WTFTG.4053

BFW-40.5KV/315A-4

875

655

140


205

155

Map5.2

12


Map4.4

30

20 25 18

7 Big 6 small

1256

WTFTG.4054

BFW-40.5KV/630A-4

875

655

140

205

155

Map5.2

12


Map4.4

45

35 30 28

7 Big 6 small

1256

Previous:BFW-24KV/1250A~4000A-4 Bush
Next:BFW-40.5KV/630A~3150A-4 Bush
