BP-12KV/100A-630A BFW-12KV/100A~630A

Current Location:home > products > Flange Type transformer bushing (Porcelain Sealed)

BP-12KV/100A-630A BFW-12KV/100A~630A
Contacts:Section manager
Tel:0086-318-3736777 0086-318-3736111
Mobile: 86-13333086669

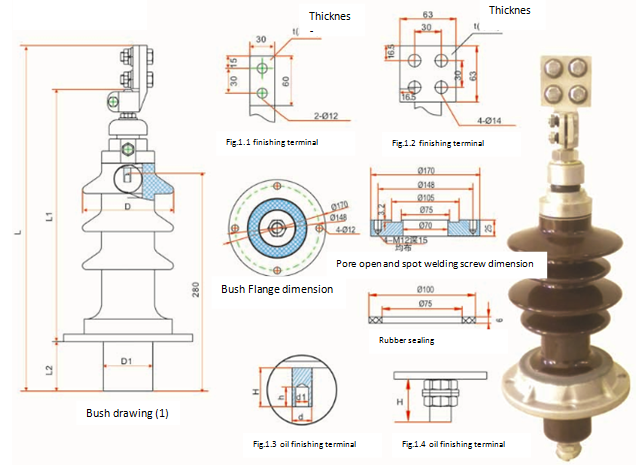

■ Outline dimension

■ Technical parameters and outline dimension of bush

Code	Type-Voltage/ Current KV/A	Dimensions (mm)						Finishing terminal		oil finishing terminal					No of Sheds	Creep age Distance (mm)
Code	Type-Voltage/ Current KV/A	L	L1(±10)	L2	L3	D	D1	Fig.	t	Fig.	H	h	d	d1	No of Sheds	Creep age Distance (mm)
WTFG.1050	BP-12/100-4L	455	330	80	265	145	65	Fig.1.1	10	Fig.1.3	30	25	25	18	Bigx2, smallx2	380
WTFG.1051	BP-12/250-4L	455	330	80	265	145	65	Fig.1.1	10	Fig.1.3	30	25	25	18	Bigx2, smallx2	380
WTFG.1052	BP-12/400-4L	465	335	80	265	145	65	Fig.1.2	10	Fig.1.3	30	25	30	23	Bigx2, smallx2	380
WTFG.1053	BP-12/630-4L	465	335	80	265	145	65	Fig.1.2	10	Fig.1.3	40	30	30	25	Bigx2, smallx2	380
WTFG.1054	BFW-12/100	505	332	115		145	65	Fig.1.1	10	Fig.1.4	40				Bigx2, smallx2	380
WTFG.1055	BFW-12/250	505	332	115		145	65	Fig.1.1	10	Fig.1.4	40				Bigx2, smallx2	380
WTFG.1056	BFW-12/315	505	332	115		145	65	Fig.1.2	12	Fig.1.4	40				Bigx2, smallx2	380
WTFG.1057	BFW-12/630	530	332	115		145	65	Fig.1.2	12	Fig.1.4	40				Bigx2, smallx2	380
