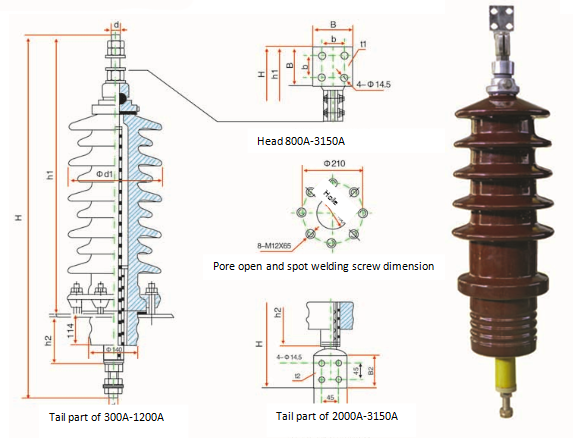

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/ Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance(mm) |
Weight Kg |
||||||||||
|
H |
h1 |
h2 |
d |
d1 |
B |
b |
B1 |
B2 |
t1 |
t2 |
||||||
|
WT.0300.40 |
BJ-40/300 |
865 |
619 |
217 |
M12 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
19 |
|
WT.0400.40 |
BJ-40/400 |
887 |
634 |
220 |
M16 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
20 |
|
WT.0600.40 |
BJ-40/600 |
905 |
645 |
223 |
M20 |
210 |
|
|
|
|
|
|
Single Umbrella |
7 |
875 |
21 |
|
WT.0800.40 |
BJ-40/800 |
1013 |
754 |
224 |
M24 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
23 |
|
WT.1000.40 |
BJ-40/1000 |
1020 |
758 |
224 |
M30 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
26 |
|
WT.1200.40 |
BJ-40/1200 |
1030 |
761 |
224 |
M33 |
210 |
80 |
40 |
|
|
12 |
|
Single Umbrella |
7 |
875 |
28 |
|
WT.2000.40 |
BJ-40/2000 |
1120 |
798 |
210 |
Φ42 |
210 |
100 |
50 |
80 |
85 |
16 |
14 |
Single Umbrella |
7 |
875 |
35 |
|
WT.3150.40 |
BJ-40/3150 |
1120 |
798 |
210 |
Φ48 |
210 |
100 |
50 |
80 |
85 |
16 |
16 |
Single Umbrella |
7 |
875 |
39 |
|
WT.0300.40.W |
BJW-40/300 |
950 |
704 |
217 |
M12 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
29 |
|
WT.0400.40.W |
BJW-40/400 |
972 |
719 |
220 |
M16 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
30 |
|
WT.0600.40.W |
BJW-40/600 |
990 |
730 |
223 |
M20 |
250 |
|
|
|
|
|
|
Big and small umbrellas |
11 |
1280 |
31 |
|
WT.0800.40.W |
BJW-40/800 |
1098 |
839 |
224 |
M24 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
33 |
|
WT.1000.40.W |
BJW-40/1000 |
1105 |
843 |
224 |
M30 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
37 |
|
WT.1200.40.W |
BJW-40/1200 |
1105 |
846 |
224 |
M33 |
250 |
80 |
40 |
|
|
12 |
|
Big and small umbrellas |
11 |
1280 |
39 |
|
WT.2000.40.W |
BJW-40/2000 |
1205 |
883 |
210 |
Φ42 |
250 |
100 |
50 |
80 |
85 |
16 |
14 |
Big and small umbrellas |
11 |
1280 |
47 |
|
WT.3150.40.W |
BJW-40/3150 |
1205 |
883 |
210 |
Φ48 |
250 |
100 |
50 |
80 |
85 |
16 |
16 |
Big and small umbrellas |
11 |
1280 |
51 |
